S100 Integral Parting Holders

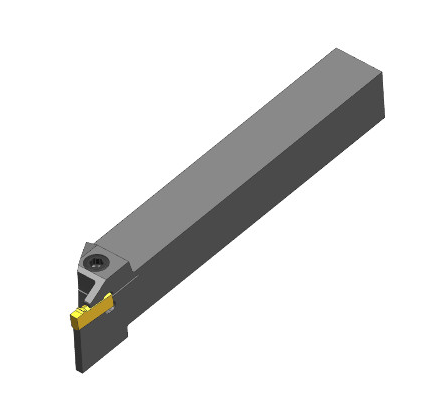

PH Horn S100 Series Integral Parting Toolholders
The PH Horn S100 series is a Universal / High Performance Parting Off system for nearly all materials.
Depth of Groove up to 32.5mm (65mm Diameter)
Width of Groove 3.0mm
Self Clamping
Note: P39L Wrench is not included with the blade purchase - must be ordered seperately
