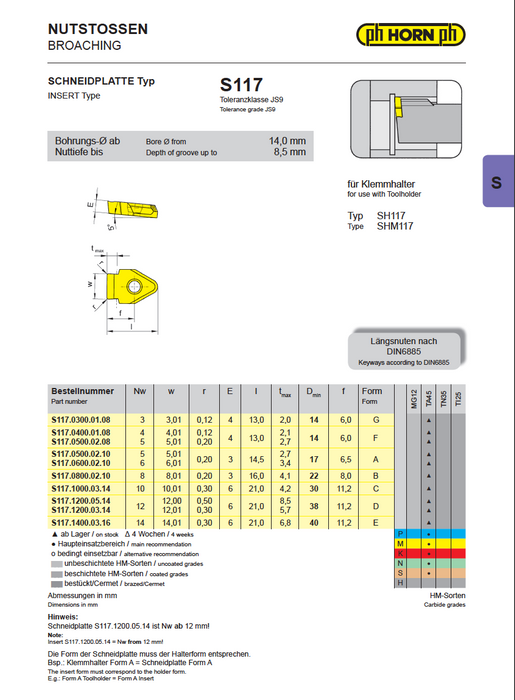

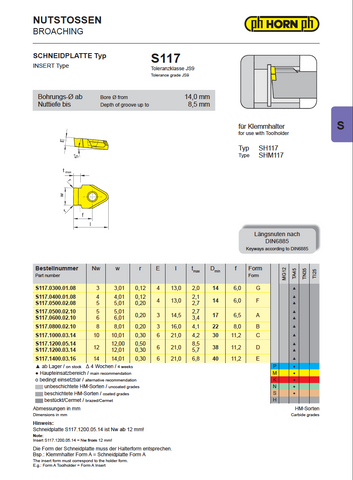

SH117 JS9 Tolerance Broaching Inserts

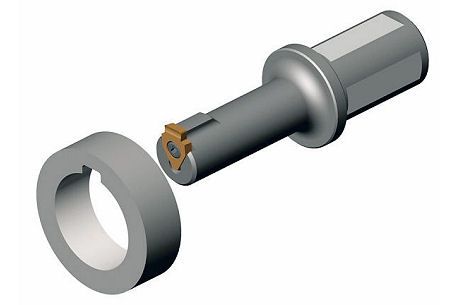

PH HORN Type SH117 Broaching Tools

JS9 Tolerance Inserts - TA45 Coated - For All Materials


Application Tips:
1) It is important to use a machine with mechanical spindle lock ie: C Axis on CNC Lathe
2) The use of proper coolant is key to a good surface finish, long tool life as well as good chip evacuation
3) A relief groove or the possibility for a "ramp down" exit out of the cut is necessary at the end of the broached groove
4) Setting of the tool is very important, double check the component diameter before taking the first pass
5) The tool should be set at the 12 O'Clock position to ensure that chips fall away from the groove
6) Take an accurate measurement of the insert and program the dimension into the machine tool parameter
7) Position the tool at the start position of the first stroke and program a stop to perform a visual check to assure a collision free pass of the tool!

The same Form must be used for Holder and Insert ie: Form C Holders can only fit Form C Inserts.

Code Product Name Price Stock Level Quantity
PH S11703000108TA45
Out of Stock
PH S11704000108B1AN45
In Stock
PH S11705000210B1AN45
In Stock
PH S11706000210B1AN45
In Stock
PH S11708000210TA45
Out of Stock
PH S11708000210B1AN45
In Stock
PH S11710000314A1AN45
Out of Stock
PH S11710000314B1AN45
In Stock
PH S11712000514TA45
Out of Stock
PH S11712000314A1AN45
In Stock
PH S11712000314B1AN45
In Stock
PH S11714000316TA45
Out of Stock
PH S11714000316B1AN45
In Stock
