  • HT800WP Drill Bodies - 10xD

HT800WP Drill Bodies - 10xD

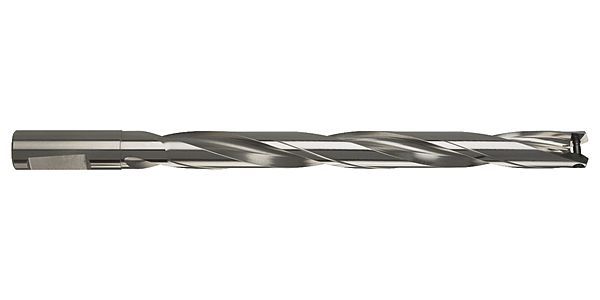

Guhring HT800WP Modular Inserted Drilling Sytem

With the new HT800WP Interchangeable drilling system, Guhring provides high-performance and cost-efficient holders for for holes in the diameter range from 11.0 to 40.0mm. The HT800WP drilling system is therefore ideal for the production of large, highly accurate holes in various materials for applications in the energy, automotive, general engineering and steel construction industries.

Features:

Extended Tool Life
Optimal Chip Evacuation
Rigid Toolholders
Highly Accurate and Rigid Insert Seat
Perfect Cooling Lubrication

Applicable Inserts:

4112 - For Steel
4113 - For Cast Iron
4115 - For Stainless Steel
4114 - For Aluminium
4111 - For Pilot Drilling

Add to Favourites
Link Part Number Size Description Price Pack Size Shank (mm) Overall Length (mm) Flute Length (mm) Corner Radius (mm) Stock Level Quantity
More Info
More Info
GU 4110 11.000
11.000
HT800WP Drill Body 10xD - Dia 11.000mm - Dia-Range 11.00-11.49
$721.45 (Excl GST)
1
12.00
180.2
135
Stock Level:
Back Order
More Info
More Info
GU 4110 11.500
11.500
HT800WP Drill Body 10xD - Dia 11.500mm - Dia-Range 11.50-11.99
$721.45 (Excl GST)
1
12.00
185.2
140
Stock Level:
Back Order
More Info
More Info
GU 4110 12.000
12.000
HT800WP Drill Body 10xD - Dia 12.000mm - Dia-Range 12.00-12.49
$721.45 (Excl GST)
1
12.00
192
147
Stock Level:
Back Order
More Info
More Info
GU 4110 12.500
12.500
HT800WP Drill Body 10xD - Dia 12.500mm - Dia-Range 12.50-12.99
$721.45 (Excl GST)
1
14.00
197.1
152
Stock Level:
Back Order
More Info
More Info
GU 4110 13.000
13.000
HT800WP Drill Body 10xD - Dia 13.000mm - Dia-Range 13.00-13.49
$721.45 (Excl GST)
1
14.00
203
158
Stock Level:
Back Order
More Info
More Info
GU 4110 13.500
13.500
HT800WP Drill Body 10xD - Dia 13.500mm - Dia-Range 13.50-13.99
$721.45 (Excl GST)
1
14.00
209
164
Stock Level:
Back Order
More Info
More Info
GU 4110 14.000
14.000
HT800WP Drill Body 10xD - Dia 14.000mm - Dia-Range 14.00-14.49
$782.33 (Excl GST)
1
14.00
214.8
170
Stock Level:
Back Order
More Info
More Info
GU 4110 14.500
14.500
HT800WP Drill Body 10xD - Dia 14.500mm - Dia-Range 14.50-14.99
$782.33 (Excl GST)
1
16.00
222.8
175
Stock Level:
Back Order
More Info
More Info
GU 4110 15.000
15.000
HT800WP Drill Body 10xD - Dia 15.000mm - Dia-Range 15.00-15.49
$782.33 (Excl GST)
1
16.00
229.8
182
Stock Level:
Back Order
More Info
More Info
GU 4110 15.500
15.500
HT800WP Drill Body 10xD - Dia 15.500mm - Dia-Range 15.50-15.99
$782.33 (Excl GST)
1
16.00
234.8
187
Stock Level:
Back Order
More Info
More Info
GU 4110 16.000
16.000
HT800WP Drill Body 10xD - Dia 16.000mm - Dia-Range 16.00-16.49
$973.25 (Excl GST)
1
16.00
240.6
193
Stock Level:
Back Order
More Info
More Info
GU 4110 16.500
16.500
HT800WP Drill Body 10xD - Dia 16.500mm - Dia-Range 16.50-16.99
$973.25 (Excl GST)
1
18.00
246.6
199
Stock Level:
Back Order
More Info
More Info
GU 4110 17.000
17.000
HT800WP Drill Body 10xD - Dia 17.000mm - Dia-Range 17.00-17.49
$973.25 (Excl GST)
1
18.00
252.6
205
Stock Level:
Back Order
More Info
More Info
GU 4110 17.500
17.500
HT800WP Drill Body 10xD - Dia 17.500mm - Dia-Range 17.50-17.99
$973.25 (Excl GST)
1
18.00
257.6
210
Stock Level:
Back Order
More Info
More Info
GU 4110 18.000
18.000
HT800WP Drill Body 10xD - Dia 18.000mm - Dia-Range 18.00-18.49
$1,044.70 (Excl GST)
1
18.00
264.2
217
Stock Level:
Back Order
More Info
More Info
GU 4110 18.500
18.500
HT800WP Drill Body 10xD - Dia 18.500mm - Dia-Range 18.50-18.99
$1,044.70 (Excl GST)
1
20.00
271.2
222
Stock Level:
Back Order
More Info
More Info
GU 4110 19.000
19.000
HT800WP Drill Body 10xD - Dia 19.000mm - Dia-Range 19.00-19.49
$1,044.70 (Excl GST)
1
20.00
277.2
228
Stock Level:
Back Order
More Info
More Info
GU 4110 19.500
19.500
HT800WP Drill Body 10xD - Dia 19.500mm - Dia-Range 19.50-19.99
$1,044.70 (Excl GST)
1
20.00
283.2
234
Stock Level:
Back Order
More Info
More Info
GU 4110 20.000
20.000
HT800WP Drill Body 10xD - Dia 20.000mm - Dia-Range 20.00-20.49
$1,044.70 (Excl GST)
1
20.00
288.9
240
Stock Level:
Back Order
More Info
More Info
GU 4110 20.500
20.500
HT800WP Drill Body 10xD - Dia 20.500mm - Dia-Range 20.50-20.99
$1,044.70 (Excl GST)
1
25.00
302.9
246
Stock Level:
Back Order
More Info
More Info
GU 4110 21.000
21.000
HT800WP Drill Body 10xD - Dia 21.000mm - Dia-Range 21.00-21.49
$1,282.44 (Excl GST)
1
25.00
308.9
252
Stock Level:
Back Order
More Info
More Info
GU 4110 21.500
21.500
HT800WP Drill Body 10xD - Dia 21.500mm - Dia-Range 21.50-21.99
$1,282.44 (Excl GST)
1
25.00
313.9
257
Stock Level:
Back Order
More Info
More Info
GU 4110 22.000
22.000
HT800WP Drill Body 10xD - Dia 22.000mm - Dia-Range 22.00-22.49
$1,282.44 (Excl GST)
1
25.00
319.6
263
Stock Level:
Back Order
More Info
More Info
GU 4110 22.500
22.500
HT800WP Drill Body 10xD - Dia 22.500mm - Dia-Range 22.50-22.99
$1,282.44 (Excl GST)
1
25.00
325.6
269
Stock Level:
Back Order
More Info
More Info
GU 4110 23.000
23.000
HT800WP Drill Body 10xD - Dia 23.000mm - Dia-Range 23.00-23.49
$1,449.90 (Excl GST)
1
25.00
331.7
275
Stock Level:
Back Order
More Info
More Info
GU 4110 23.500
23.500
HT800WP Drill Body 10xD - Dia 23.500mm - Dia-Range 23.50-23.99
$1,449.90 (Excl GST)
1
25.00
337.7
281
Stock Level:
Back Order
More Info
More Info
GU 4110 24.000
24.000
HT800WP Drill Body 10xD - Dia 24.000mm - Dia-Range 24.00-24.49
$1,449.90 (Excl GST)
1
25.00
343.4
287
Stock Level:
Back Order
More Info
More Info
GU 4110 24.500
24.500
HT800WP Drill Body 10xD - Dia 24.500mm - Dia-Range 24.50-24.99
$1,449.90 (Excl GST)
1
25.00
348.4
292
Stock Level:
Back Order
More Info
More Info
GU 4110 25.000
25.000
HT800WP Drill Body 10xD - Dia 25.000mm - Dia-Range 25.00-25.49
$1,449.90 (Excl GST)
1
25.00
355.4
299
Stock Level:
Back Order
More Info
More Info
GU 4110 25.500
25.500
HT800WP Drill Body 10xD - Dia 25.500mm - Dia-Range 25.50-25.99
$1,449.90 (Excl GST)
1
32.00
365.4
304
Stock Level:
Back Order
More Info
More Info
GU 4110 26.000
26.000
HT800WP Drill Body 10xD - Dia 26.000mm - Dia-Range 26.00-26.49
$1,449.90 (Excl GST)
1
32.00
370.6
310
Stock Level:
Back Order
More Info
More Info
GU 4110 26.500
26.500
HT800WP Drill Body 10xD - Dia 26.500mm - Dia-Range 26.50-26.99
$1,665.42 (Excl GST)
1
32.00
375.6
315
Stock Level:
Back Order
More Info
More Info
GU 4110 27.000
27.000
HT800WP Drill Body 10xD - Dia 27.000mm - Dia-Range 27.00-27.49
$1,665.42 (Excl GST)
1
32.00
381.6
321
Stock Level:
Back Order
More Info
More Info
GU 4110 27.500
27.500
HT800WP Drill Body 10xD - Dia 27.500mm - Dia-Range 27.50-27.99
$1,665.42 (Excl GST)
1
32.00
387.6
327
Stock Level:
Back Order
More Info
More Info
GU 4110 28.000
28.000
HT800WP Drill Body 10xD - Dia 28.000mm - Dia-Range 28.00-28.49
$1,665.42 (Excl GST)
1
32.00
393.3
333
Stock Level:
Back Order
More Info
More Info
GU 4110 28.500
28.500
HT800WP Drill Body 10xD - Dia 28.500mm - Dia-Range 28.50-28.99
$1,905.51 (Excl GST)
1
32.00
398.3
338
Stock Level:
Back Order
More Info
More Info
GU 4110 29.000
29.000
HT800WP Drill Body 10xD - Dia 29.000mm - Dia-Range 29.00-29.49
$1,905.51 (Excl GST)
1
32.00
405.3
345
Stock Level:
Back Order
More Info
More Info
GU 4110 29.500
29.500
HT800WP Drill Body 10xD - Dia 29.500mm - Dia-Range 29.50-29.99
$1,905.51 (Excl GST)
1
32.00
411.3
351
Stock Level:
Back Order
More Info
More Info
GU 4110 30.000
30.000
HT800WP Drill Body 10xD - Dia 30.000mm - Dia-Range 30.00-30.49
$1,905.51 (Excl GST)
1
32.00
416.7
357
Stock Level:
Back Order
More Info
More Info
GU 4110 30.500
30.500
HT800WP Drill Body 10xD - Dia 30.500mm - Dia-Range 30.50-30.99
$2,163.16 (Excl GST)
1
32.00
421.7
362
Stock Level:
Back Order
More Info
More Info
GU 4110 31.000
31.000
HT800WP Drill Body 10xD - Dia 31.000mm - Dia-Range 31.00-31.49
$2,163.16 (Excl GST)
1
32.00
427.7
368
Stock Level:
Back Order
More Info
More Info
GU 4110 31.500
31.500
HT800WP Drill Body 10xD - Dia 31.500mm - Dia-Range 31.50-31.99
$2,163.16 (Excl GST)
1
32.00
433.7
374
Stock Level:
Back Order
