  • HT800WP Drill Bodies - 7xD

HT800WP Drill Bodies - 7xD

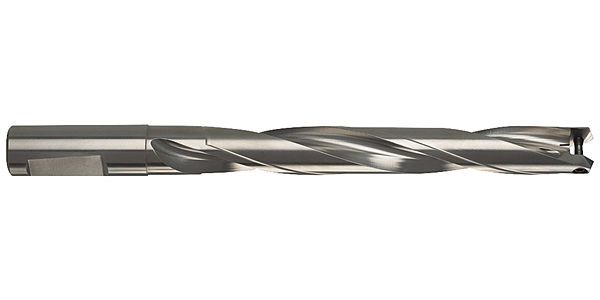

Guhring HT800WP Modular Inserted Drilling Sytem

With the new HT800WP Interchangeable drilling system, Guhring provides high-performance and cost-efficient holders for for holes in the diameter range from 11.0 to 40.0mm. The HT800WP drilling system is therefore ideal for the production of large, highly accurate holes in various materials for applications in the energy, automotive, general engineering and steel construction industries.

Features:

Extended Tool Life
Optimal Chip Evacuation
Rigid Toolholders
Highly Accurate and Rigid Insert Seat
Perfect Cooling Lubrication

Applicable Inserts:

4112 - For Steel
4113 - For Cast Iron
4115 - For Stainless Steel
4114 - For Aluminium
4111 - For Pilot Drilling

Add to Favourites
Link Part Number Size Description Price Pack Size Shank (mm) Overall Length (mm) Flute Length (mm) Corner Radius (mm) Stock Level Quantity
More Info
More Info
GU 4109 11.000
11.000
HT800WP Drill Body 7xD - Dia 11.000mm - Dia-Range 11.00-11.49
$575.50 (Excl GST)
1
12.00
145.2
100
Stock Level:
Back Order
More Info
More Info
GU 4109 11.500
11.500
HT800WP Drill Body 7xD - Dia 11.500mm - Dia-Range 11.50-11.99
$575.50 (Excl GST)
1
12.00
149.2
104
Stock Level:
Back Order
More Info
More Info
GU 4109 12.000
12.000
HT800WP Drill Body 7xD - Dia 12.000mm - Dia-Range 12.00-12.49
$575.50 (Excl GST)
1
12.00
154
109
Stock Level:
Back Order
More Info
More Info
GU 4109 12.500
12.500
HT800WP Drill Body 7xD - Dia 12.500mm - Dia-Range 12.50-12.99
$575.50 (Excl GST)
1
14.00
158.1
113
Stock Level:
Back Order
More Info
More Info
GU 4109 13.000
13.000
HT800WP Drill Body 7xD - Dia 13.000mm - Dia-Range 13.00-13.49
$575.50 (Excl GST)
1
14.00
162
117
Stock Level:
Back Order
More Info
More Info
GU 4109 13.500
13.500
HT800WP Drill Body 7xD - Dia 13.500mm - Dia-Range 13.50-13.99
$575.50 (Excl GST)
1
14.00
167
122
Stock Level:
Back Order
More Info
More Info
GU 4109 14.000
14.000
HT800WP Drill Body 7xD - Dia 14.000mm - Dia-Range 14.00-14.49
$630.08 (Excl GST)
1
14.00
170.8
126
Stock Level:
Back Order
More Info
More Info
GU 4109 14.500
14.500
HT800WP Drill Body 7xD - Dia 14.500mm - Dia-Range 14.50-14.99
$630.08 (Excl GST)
1
16.00
177.8
130
Stock Level:
Back Order
More Info
More Info
GU 4109 15.000
15.000
HT800WP Drill Body 7xD - Dia 15.000mm - Dia-Range 15.00-15.49
$630.08 (Excl GST)
1
16.00
182.8
135
Stock Level:
Back Order
More Info
More Info
GU 4109 15.500
15.500
HT800WP Drill Body 7xD - Dia 15.500mm - Dia-Range 15.50-15.99
$630.08 (Excl GST)
1
16.00
186.8
139
Stock Level:
Back Order
More Info
More Info
GU 4109 16.000
16.000
HT800WP Drill Body 7xD - Dia 16.000mm - Dia-Range 16.00-16.49
$780.01 (Excl GST)
1
16.00
190.6
143
Stock Level:
Back Order
More Info
More Info
GU 4109 16.500
16.500
HT800WP Drill Body 7xD - Dia 16.500mm - Dia-Range 16.50-16.99
$780.01 (Excl GST)
1
18.00
195.6
148
Stock Level:
Back Order
More Info
More Info
GU 4109 17.000
17.000
HT800WP Drill Body 7xD - Dia 17.000mm - Dia-Range 17.00-17.49
$780.01 (Excl GST)
1
18.00
199.6
152
Stock Level:
Back Order
More Info
More Info
GU 4109 17.500
17.500
HT800WP Drill Body 7xD - Dia 17.500mm - Dia-Range 17.50-17.99
$780.01 (Excl GST)
1
18.00
203.6
156
Stock Level:
Back Order
More Info
More Info
GU 4109 18.000
18.000
HT800WP Drill Body 7xD - Dia 18.000mm - Dia-Range 18.00-18.49
$846.75 (Excl GST)
1
18.00
208.2
161
Stock Level:
Back Order
More Info
More Info
GU 4109 18.500
18.500
HT800WP Drill Body 7xD - Dia 18.500mm - Dia-Range 18.50-18.99
$846.75 (Excl GST)
1
20.00
214.2
165
Stock Level:
Back Order
More Info
More Info
GU 4109 19.000
19.000
HT800WP Drill Body 7xD - Dia 19.000mm - Dia-Range 19.00-19.49
$846.75 (Excl GST)
1
20.00
218.2
169
Stock Level:
Back Order
More Info
More Info
GU 4109 19.500
19.500
HT800WP Drill Body 7xD - Dia 19.500mm - Dia-Range 19.50-19.99
$846.75 (Excl GST)
1
20.00
223.2
174
Stock Level:
Back Order
More Info
More Info
GU 4109 20.000
20.000
HT800WP Drill Body 7xD - Dia 20.000mm - Dia-Range 20.00-20.49
$846.75 (Excl GST)
1
20.00
226.9
178
Stock Level:
Back Order
More Info
More Info
GU 4109 20.500
20.500
HT800WP Drill Body 7xD - Dia 20.500mm - Dia-Range 20.50-20.99
$846.75 (Excl GST)
1
25.00
239.9
183
Stock Level:
Back Order
More Info
More Info
GU 4109 21.000
21.000
HT800WP Drill Body 7xD - Dia 21.000mm - Dia-Range 21.00-21.49
$846.75 (Excl GST)
1
25.00
243.9
187
Stock Level:
Back Order
More Info
More Info
GU 4109 21.500
21.500
HT800WP Drill Body 7xD - Dia 21.500mm - Dia-Range 21.50-21.99
$846.75 (Excl GST)
1
25.00
247.9
191
Stock Level:
Back Order
More Info
More Info
GU 4109 22.000
22.000
HT800WP Drill Body 7xD - Dia 22.000mm - Dia-Range 22.00-22.49
$846.75 (Excl GST)
1
25.00
251.6
195
Stock Level:
Back Order
More Info
More Info
GU 4109 22.500
22.500
HT800WP Drill Body 7xD - Dia 22.500mm - Dia-Range 22.50-22.99
$846.75 (Excl GST)
1
25.00
256.6
200
Stock Level:
Back Order
More Info
More Info
GU 4109 23.000
23.000
HT800WP Drill Body 7xD - Dia 23.000mm - Dia-Range 23.00-23.49
$953.33 (Excl GST)
1
25.00
260.7
204
Stock Level:
Back Order
More Info
More Info
GU 4109 23.500
23.500
HT800WP Drill Body 7xD - Dia 23.500mm - Dia-Range 23.50-23.99
$953.33 (Excl GST)
1
25.00
265.7
209
Stock Level:
Back Order
More Info
More Info
GU 4109 24.000
24.000
HT800WP Drill Body 7xD - Dia 24.000mm - Dia-Range 24.00-24.49
$953.33 (Excl GST)
1
25.00
269.4
213
Stock Level:
Back Order
More Info
More Info
GU 4109 24.500
24.500
HT800WP Drill Body 7xD - Dia 24.500mm - Dia-Range 24.50-24.99
$953.33 (Excl GST)
1
25.00
273.4
217
Stock Level:
Back Order
More Info
More Info
GU 4109 25.000
25.000
HT800WP Drill Body 7xD - Dia 25.000mm - Dia-Range 25.00-25.49
$953.33 (Excl GST)
1
25.00
278.4
222
Stock Level:
Back Order
More Info
More Info
GU 4109 25.500
25.500
HT800WP Drill Body 7xD - Dia 25.500mm - Dia-Range 25.50-25.99
$953.33 (Excl GST)
1
32.00
287.4
226
Stock Level:
Back Order
More Info
More Info
GU 4109 26.000
26.000
HT800WP Drill Body 7xD - Dia 26.000mm - Dia-Range 26.00-26.49
$953.33 (Excl GST)
1
32.00
290.6
230
Stock Level:
Back Order
More Info
More Info
GU 4109 26.500
26.500
HT800WP Drill Body 7xD - Dia 26.500mm - Dia-Range 26.50-26.99
$1,117.29 (Excl GST)
1
32.00
294.6
234
Stock Level:
Back Order
More Info
More Info
GU 4109 27.000
27.000
HT800WP Drill Body 7xD - Dia 27.000mm - Dia-Range 27.00-27.49
$1,117.29 (Excl GST)
1
32.00
299.6
239
Stock Level:
Back Order
More Info
More Info
GU 4109 27.500
27.500
HT800WP Drill Body 7xD - Dia 27.500mm - Dia-Range 27.50-27.99
$1,117.29 (Excl GST)
1
32.00
303.6
243
Stock Level:
Back Order
More Info
More Info
GU 4109 28.000
28.000
HT800WP Drill Body 7xD - Dia 28.000mm - Dia-Range 28.00-28.49
$1,117.29 (Excl GST)
1
32.00
307.3
247
Stock Level:
Back Order
More Info
More Info
GU 4109 28.500
28.500
HT800WP Drill Body 7xD - Dia 28.500mm - Dia-Range 28.50-28.99
$1,282.44 (Excl GST)
1
32.00
311.3
251
Stock Level:
Back Order
More Info
More Info
GU 4109 29.000
29.000
HT800WP Drill Body 7xD - Dia 29.000mm - Dia-Range 29.00-29.49
$1,282.44 (Excl GST)
1
32.00
316.3
256
Stock Level:
Back Order
More Info
More Info
GU 4109 29.500
29.500
HT800WP Drill Body 7xD - Dia 29.500mm - Dia-Range 29.50-29.99
$1,282.44 (Excl GST)
1
32.00
320.3
260
Stock Level:
Back Order
More Info
More Info
GU 4109 30.000
30.000
HT800WP Drill Body 7xD - Dia 30.000mm - Dia-Range 30.00-30.49
$1,282.44 (Excl GST)
1
32.00
324.7
265
Stock Level:
Back Order
More Info
More Info
GU 4109 30.500
30.500
HT800WP Drill Body 7xD - Dia 30.500mm - Dia-Range 30.50-30.99
$1,558.83 (Excl GST)
1
32.00
328.7
269
Stock Level:
Back Order
More Info
More Info
GU 4109 31.000
31.000
HT800WP Drill Body 7xD - Dia 31.000mm - Dia-Range 31.00-31.49
$1,558.83 (Excl GST)
1
32.00
332.7
273
Stock Level:
Back Order
More Info
More Info
GU 4109 31.500
31.500
HT800WP Drill Body 7xD - Dia 31.500mm - Dia-Range 31.50-31.99
$1,558.83 (Excl GST)
1
32.00
336.7
277
Stock Level:
Back Order
More Info
More Info
GU 4109 33.000
33.000
HT800WP Drill Body 7xD - Dia 33.000mm - Dia-Range 33.00-33.99
$1,558.83 (Excl GST)
1
32.00
354.6
295
Stock Level:
Back Order
More Info
More Info
GU 4109 36.000
36.000
HT800WP Drill Body 7xD - Dia 36.000mm - Dia-Range 36.00-36.99
$1,905.51 (Excl GST)
1
32.00
379.3
319.9
Stock Level:
Back Order
More Info
More Info
GU 4109 39.000
39.000
HT800WP Drill Body 7xD - Dia 39.000mm - Dia-Range 39.00-40.00
$1,905.51 (Excl GST)
1
32.00
405.3
345.9
Stock Level:
Back Order
