DN Solutions LYNX 2100LSYB

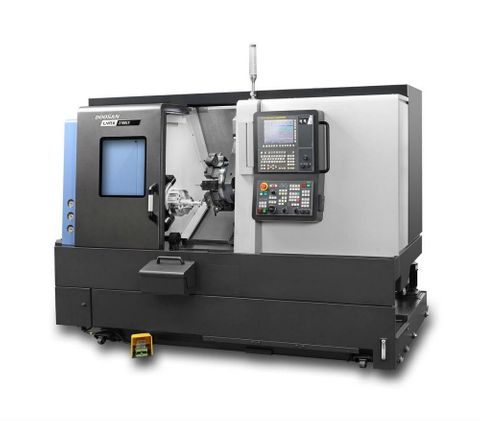

DN Solutions LYNX 2100LSYB High Productivity Twin Spindle Millturn Center with Y Axis

Our popular, best selling and compact LYNX 2100LSYB includes sub spindle and Y Axis. Equipped with 8" Chuck on the Main and 5" Chuck on the Sub, these machines deliver increased productivity and manufacturing flexibility. Since they were introduced they have become firm favourites with component manufacturers looking to machine small complex precision parts in few setups.

New features include:

* Latest Fanuc OiPLUS iHMI Series Controller with 15" Colour LCD TouchScreen
* New version of Doosan's Easy Operation Software
* Manual Guide i Conversational Programming System
* Roller Type LM Guideways - twice as rigid and double the service life of low cost ball type!
* Grease Type Lubrication
* Newly developed direct type turret and live tool drive.

Our stock LYNX 2100LSYB specifacation is as follows:

Main Spindle - 8" Chuck with 65mm Bar Capacity
Sub Spindle - 5" Chuck with 34mm Bar Capacity
24 Station BMT45 Turret
3.7KW Live Tooling 6000RPM
C Axis 0.001 Degree (Both Main & Sub Spindles)
510mm Maximum Turning Length
105mm Y Axis (+/- 52.5mm)
30/30/30/36m/min Rapid Traverse (X/B/Z/Y)

Options included as standard:

* Chip Conveyor - Hinged Belt Type - Right Hand Exit
* Chip Bucket 220Ltr
* Parts Catcher with Work Conveyor
* Renishaw Automatic Toolsetter
* Barfeeder Interface for Magazine Barfeeder
* Triple Alarm Light
* DN Tool Load Monitoring System
* Oil Skimmer
* 20 Bar High Pressure Coolant
* Auto Power Off
* Air Blast for Chuck Jaw Cleaning Main & Sub
* Polygon Turning Function
* Work Ejector with Inner Coolant for Sub Spindle
* Data Server with Ethernet Connection 1GB
* Oil Mist Collector 0.75KW
* DN Static and Live Tooling Package

PLEASE CALL US ON 0800 639 991 FOR PACKAGE PRICING!


Click Here for LYNX 2100LSY Video
