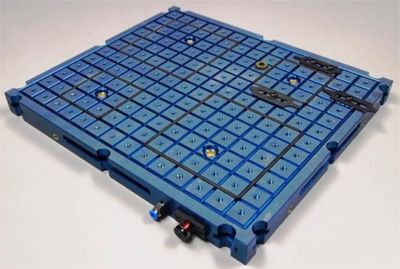

MiTee Bite Multi Power Vacuum Table

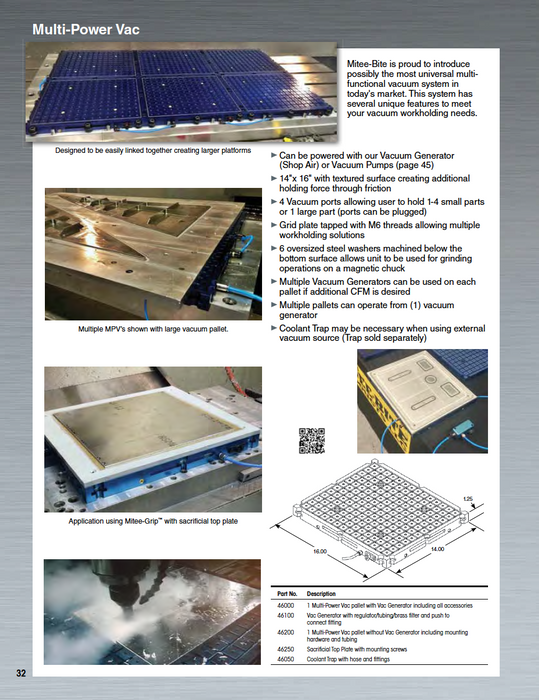

Mitee-Bite is proud to introduce possibly the most universal multi-functional vacuum system in todays market. This system has several unique features to meet your vacuum workholding needs:
* Can be powered with Mitee Bite's Vacuum Generator (Shop Air) or Vacuum Pumps
* 14" x 16" with textured surface creating additional holding force through friction
* 4 Vacuum ports allowin the user to hold 1~4 small parts or 1 large part (ports can be plugged)
* Grid plate tapped with M6 threads allowing multiple workholding solutions
* 6 Oversized steel washers machined below the bottom surface allows the units to be used for grinding operations on a magnetic chuck
* Multiple vacuum generators can be used on each pallet if additional CFM is desired
* Multiple pallets can operate from 1 vacuum generator
* Coolant Trap maybe necessary when using externa vacuum source (Trap sold seperately)
Part No: 46000
Includes One Multi-Power Vac Pallet with Vac Generator and including all accessories
