EWN Finish Boring Heads

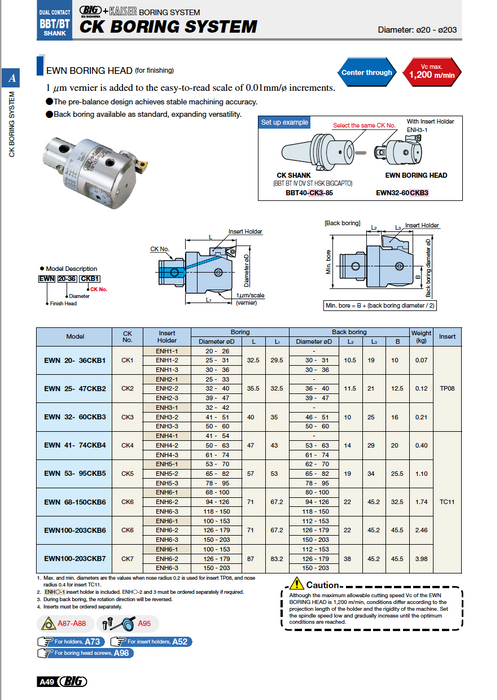

BIG KAISER EWN - 20 ~ 203mm Finish Boring Heads
Multifunctional for highest precision and efficiency.
The EWN single insert boring tool program for finishing covers an impressive diameter range with only seven precision boring heads. Each head has a large work range due to three different insert holders for each boring head. The insert holder can be mounted in the opposite direction for an easy changeover to back boring.
Features & Benefits:
* 1 Micron vernier is included to the easy-to-read scale of 0.01mm/diameter increments
* The pre-balanced design acheives stable machining accuracy
* Back boring is available as standard, expanding versatility
* Through Coolant
* Highest accuracy, purely radial cutting edge adjustment by means of a ground and play-free micrometer spindle
* High quality coated tool body for complete protection against corrosion
