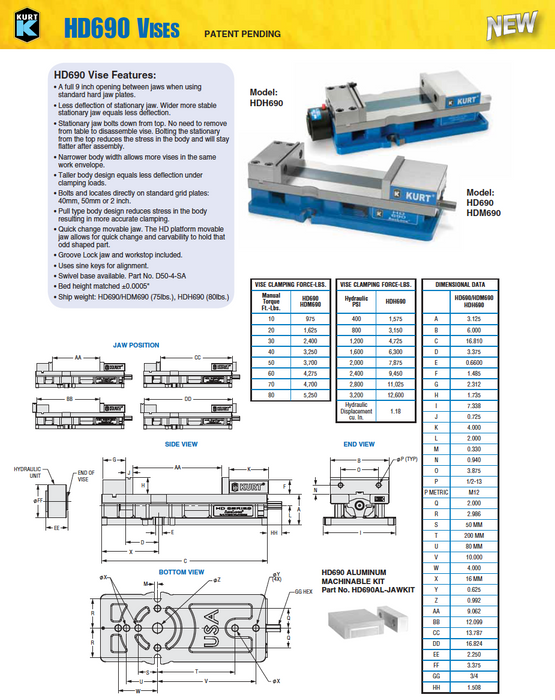

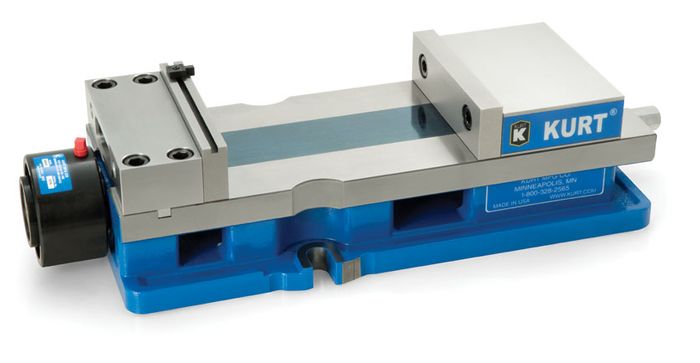

KURT HD690 Series Precision Machine Vices

Features:

* A full 9" opening between jaws when using standard hard jaw plates
* Less deflection of the stationary jaw, wider more stable stationary jaw equals less deflection
* Stationary jaw bolts from the top, no need to remove from table to disassemble vice. Bolting the stationary from the top reduces the stress in the body and will stay flatter after assembly.
* Narrower body width allows more vices in the same work envelope
* Taller body design equeals less deflection under clamping loads
* Bolts and locates directly on standard grid plates: 40, 50mm or 2"
* Pull type body design reduces stress in the body resulting in more accurate clamping
* Quick change movable jaw. The HD platform movable jaw allows for quick change and carvability to hold that odd shaped part
* Groove Lock jaw and workstop included
* Uses sine keys for alignment
* Swivel base available - P/No D50-4-SA
* Bed height matched +/-0.0005"

Code Product Name Price Stock Level Quantity
KU HDH690
In Stock
KU HD690
Out of Stock
