DN Solutions DVF5000II

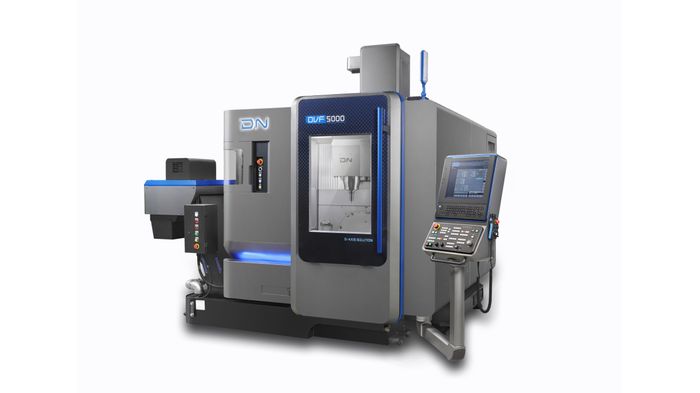

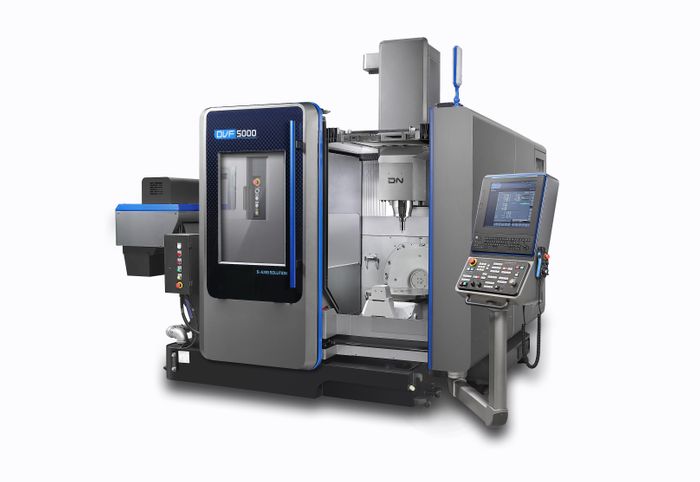

The DN Solutions DVF5000II is a premium, high-precision, simultaneous 5 Axis vertical machining centre designed to produce complex shapes in a single setup. This second generation of DVF5000 introduces significant improvements in speed, work envelope capacity, and ergonomic operator access compared to the original first-generation.

Key Engineering Enhancements:

Wide Machining Area & Space Efficiency

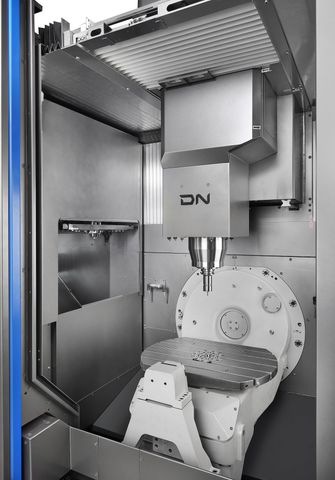

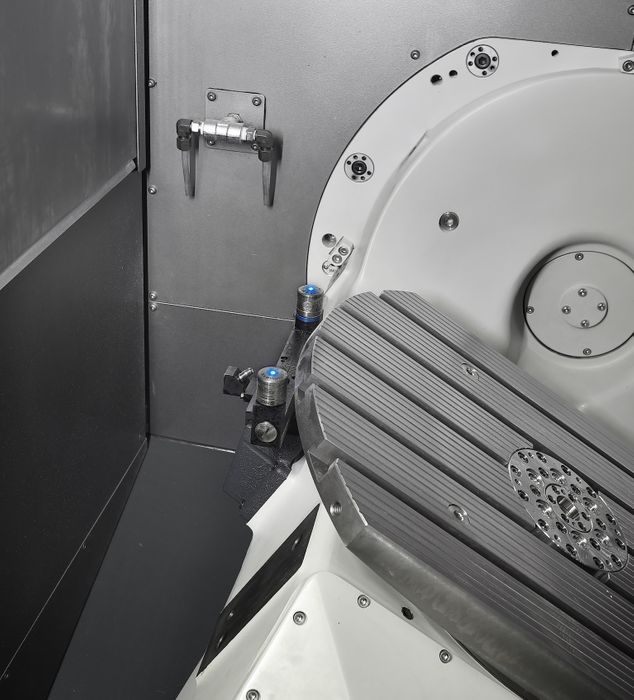

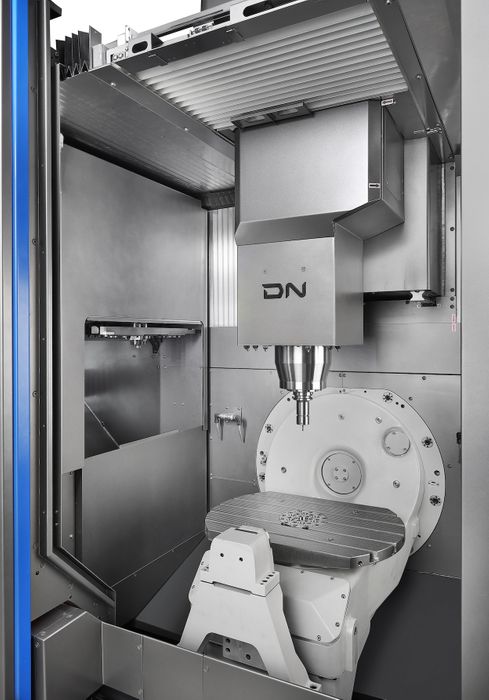

• Increased table size & wider machining area (500mm Diameter x 480mm High)
• Increased X/Y/Z travels – 650 x 520 x 480mm

Speed Up
• Faster X/Y/Z rapid traverse, acceleration & deacceleration (42m/min, 0.4G)
• Faster B/C axis rotating speed (25r/min)
• Reduced tool change time (C.T.C = 3.8 seconds)

Spindle Performance Up
• High speed spindle with Smart Thermal Compensation function as standard

Cooling / Thermal Compensation for improved Accuracy
• X/Y/Z Axis, Spindle and Table (C Axis) – Cooling as standard
• Smart structure (column / bed) – Thermal Compensation function as standard

CNC / User Convenience
• Fanuc Collision Protection System (CPS) as standard
• New Tool Magazine door located at the front of the machine for convenience along with Auto-Kicking device for easy tool unloading
• Improved Chip Flushing

Automation Solution (Option)

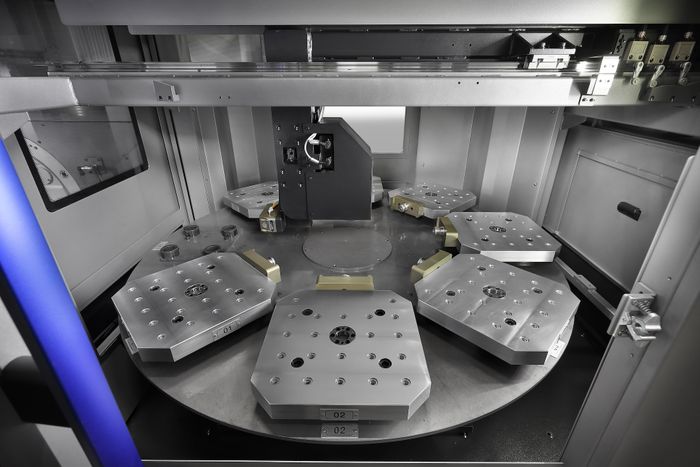

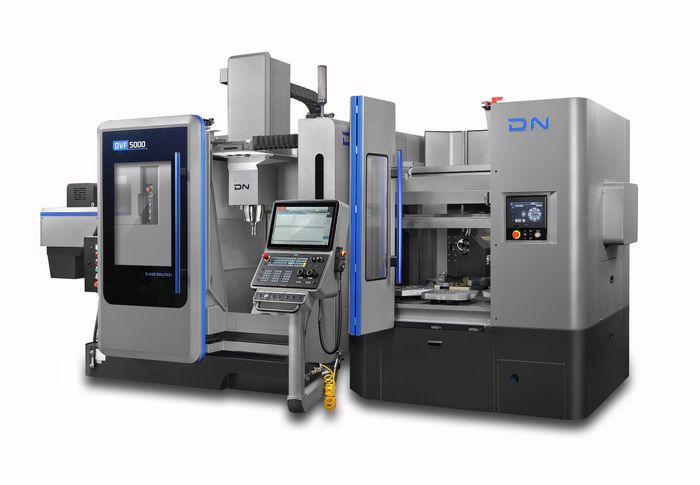

• AWC (Auto Work Changer) Automation
• Maximum 120 Tool Magazine


Our stock DVF5000II specification includes:

Maximum Workpiece Size of 600mm Diameter x 500mm High
400kg Table Loading Capacity
15,000RPM Direct Drive BIG Plus BBT40 High Speed Spindle
42 / 42 / 42m/min Rapid Traverse (X/Y/Z)
60 Station Automatic Toolchanger
Fanuc 31iMB5 Controller with 19" Touch Screen Display

Options Included as Standard:

* Chip Conveyor - Hinged Belt - Left Hand Exit
* Chip Bucket - 300ltr - Rotation Type
* 20 Bar Through Spindle Coolant System
* 1000 Block - High Speed Cutting Package
* Coolant Gun
* Oil Skimmer
* Renishaw Fully Automatic Tool Measurement - NC4S (Laser)
* Renishaw Fully Automatic Workpiece Measurement (RMP60)
* DN DCP-I Kinematic Check Function with Datum Ball
* Auto Work Changer (AWC) Preperation


PLEASE CALL US ON 0800 639 991 FOR PACKAGE PRICING!

Click Here for the new DVF5000II 2nd Generation Video Introduction
