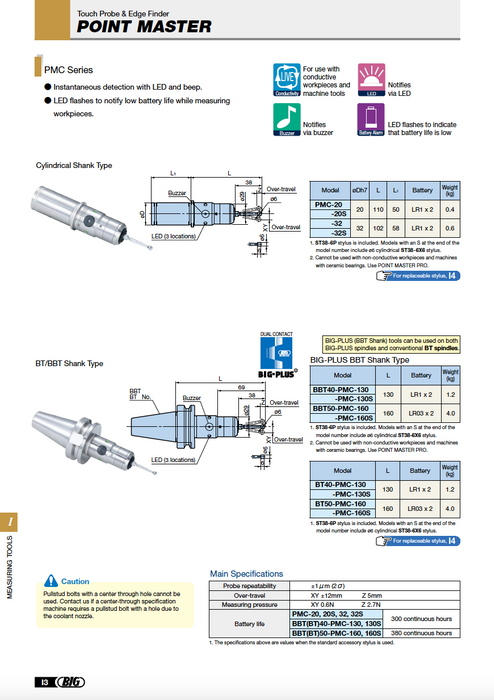

BIG DAISHOWA Pointmaster
The Pointmaster series is a precision 3D touch sensor for use with conductive materials. Only conductive materials can be measured with the Pointmaster so if want to measure non conductive materials such as resin or plastic you must choose the Pointmaster Pro series.
Note: This series is not suitable if your machine has a ceramic spindle taper or bearings - choose Pointmaster Pro instead.
Features:
* Repeatability +/- 1 Micron (0.001mm)
* 12mm Overtravel on X & Y Axis
* 5mm Overtravel on Z Axis
* Notifies via LED Light and Buzzer
* Easy to change Stylus if damaged
* Suitable for conductive materials only
